AC Motor Drive - Inverter

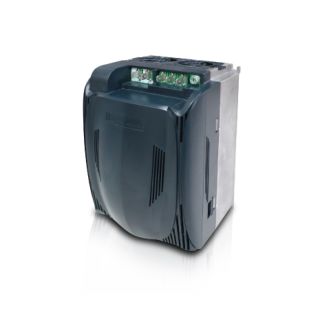

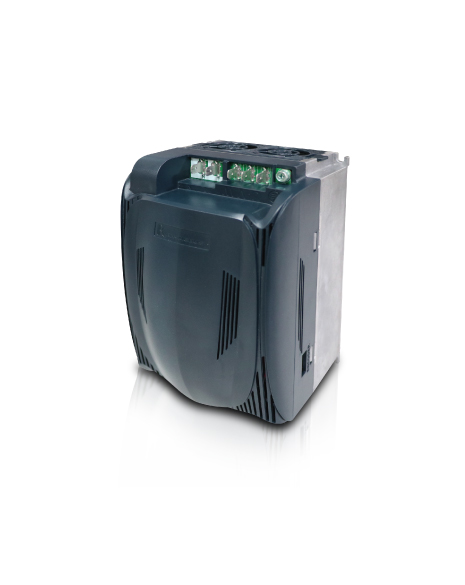

RM6T6B Series Inverter
ID：RM6T6B
The RM6T6B series inverter is a multifunctional motor inverter designed for high-end fitness club treadmills. It features high torque at low speeds, a wide speed control range, treadmill and resistance training mode switching, a built-in 48W console power supply, ErP sleep mode, stepless incline control, electromagnetic braking, and dynamic braking. It delivers powerful performance, stable output, and a versatile workout experience.
01
01
Products InfoInformation
Control Modes
High-performance control core enables auto-tuning and precise speed control for superior operation.
Provides strong torque at extremely low speeds, with a minimum speed of 0.2 km/h.
Closed-loop control with speed feedback, allowing switching between treadmill and resistance training modes.
Provides strong torque at extremely low speeds, with a minimum speed of 0.2 km/h.
Closed-loop control with speed feedback, allowing switching between treadmill and resistance training modes.
Features
- Built-in step detection for precise pedometer function without additional sensors.
- Provides DC 12V 4A power for upper control (2A for enclosed models).
- Ultra-low standby power consumption with energy-saving sleep mode.
- Precision incline control with stepless adjustment, compatible with various feedback signals.
- Built-in braking resistor with optional external module for enhanced braking performance.
- Electromagnetic brake module locks the running belt when not in use for safety.
- Temperature-controlled cooling fan extends lifespan, reduces noise, and improves energy efficiency.
- Automatic deceleration stop in case of power failure to prevent injury.
- Parameter settings with access control and password protection to ensure security.
- Stores up to 10 abnormal event logs with detailed error records for easy troubleshooting.
Safety & Compliance
- Complies with EN 60335-1 / UL 61800-5-1 insulation distance requirements and UL 60730-1 safety standards.
- Certified under UL 61800-5-1 and CAN/CSA C22.2 No. 274.
- Designed to meet CE certification standards with optional EMC filter for electromagnetic interference suppression, ensuring compliance with global EMC regulations.
- Passed 1.2G three-axis vibration tests for structural durability.
